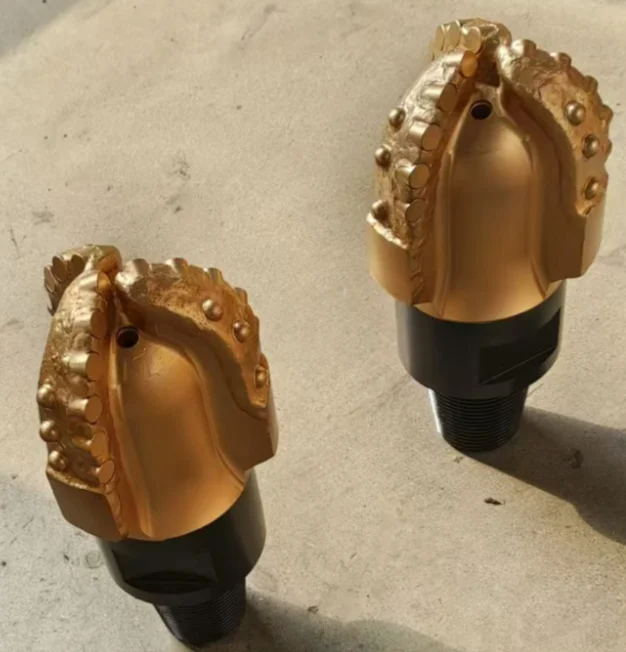

3 Wing 130mm Pdc Drill Bit Water Well Drilling Tools

Name: 3 Wing 130mm Pdc Drill Bit Water Well Drilling Tools
Brand: GLORYTEK
Price: 500 USD

Brand Name : GLORYTEK

Model Number : PDC drill bit

Certification : CE,SGS,TUV

Place of Origin : China

MOQ : 1 piece

Price : 500-1000USD

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : 5-7 workdays

Packaging Details : standard exporting packing

Advantages : High cost-effective

Availabe Blades No : 3,4,5,6,7,8,9

Body Material : steel

Formation : Soft and hard Formation

Item : PDC bit

Material : Carbide Alloy

Means Of Transport : air ,see, express

Suitable Thread : option

Contact Now

PDC Drill Bit

Product Description

PDC drill bit is a kind of full face drilling bit. It is mainly used for coal mining, oilfield, water conservancy and hydropower, construction of road and building. Glorytek has been in drilling field for decades, and we can offer PDC bit with various sizes and specifications.

3 Wing 130mm Pdc Drill Bit Water Well Drilling Tools

Technical Parameter

Bit Type	6”	8-1/2”	8-1/2”	12-1/4”	Bit Type	17-1/2” GM1606T
IADC Code	M423	M432 M332	M323	M432 M332	IADC Code	M323
Blade	5	6	8	6	Blade	6
Cutter Size (mm)	Φ13 MM	Φ16 MM	Φ13 MM	Φ16MM	Cutter Size (mm)	Φ16MM；Φ13MM
Nozzle Qty/Type	5	13.2	9.6	30.78	Cutter Qty	Φ16×58；Φ13×81
Nozzle Qty/Type	3NZ	6NZ	4NZ	6NZ	Nozzle Qty/Type	8NZ
Gauge Length	1.5”	2.2”	2”	2.5”	Gauge Length (mm)	110
Connection	3-1/2” API REG	4-1/2” API REG	4-1/2” API REG	6-5/8” API REG	Connection	7-5/8” API REG
Make up Torque(KN.m)	10.4~11.4	24.1~26.5	24.1~26.5	51.7~56.9	N.W./ G.W.(KG)	338/388
Rotary Speed(rpm)	60-260	60-260	60-260	60-260	Nozzle Size (inch)	10/32
Weight on Bit(KN)	8-50	20-100	20-100	30-140	Rotary Speed(Rpm)	60-260
Max.WOB(KN)	90	130	130	180	Weight On Bit(KN)	30-200
Flow Rate(lps)	10-30	22-35	22-35	38-70	Max.WOB (KN)	240
					Flow Rate(lps)	45-80
Above are regular sizes for your reference. Size can be customized as per your requirement.

Glorytek Industry (Beijing)Co.,Ltd.,

located in Beijing, China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.

Exhibition

Certifications

Customer Photos

FAQ

After-sale Warranty

(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.

FAQ

Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we
have drilling equipments like rigs, mud pump, air compressor, etc. as well.

Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100%
advance payment after purchase order by T/T for small orders.

Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.

Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
